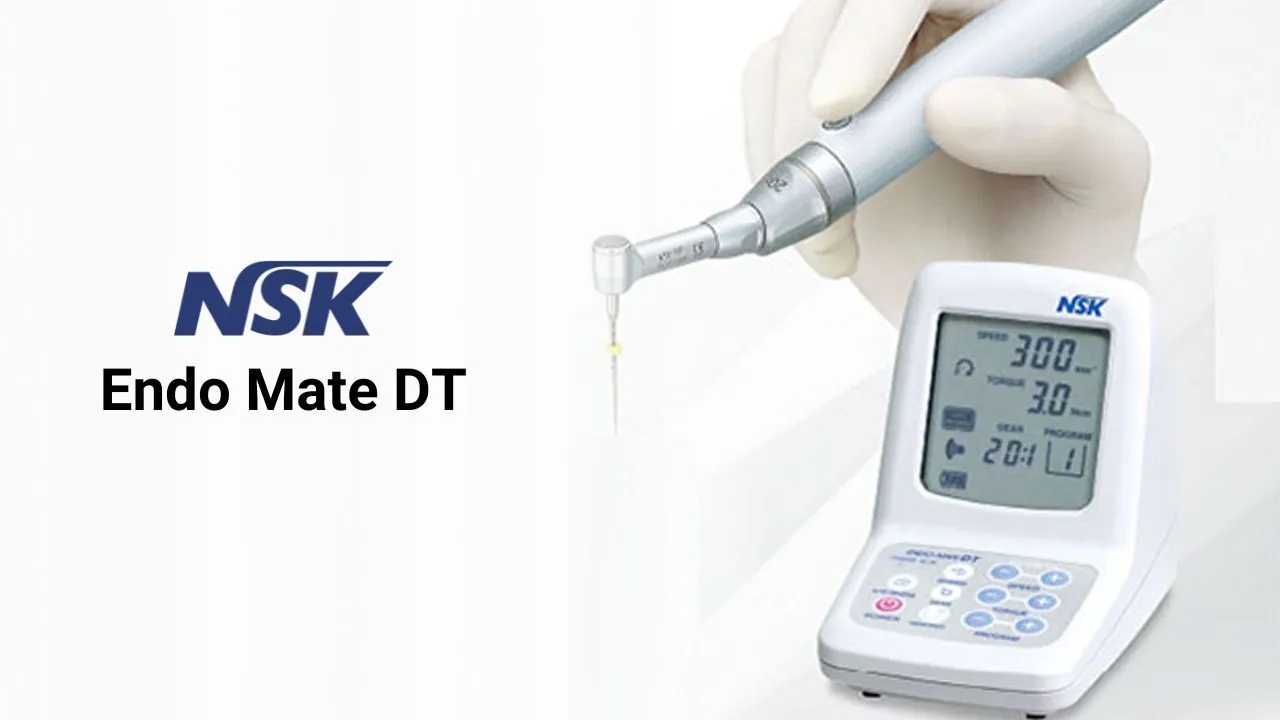

NSK Endo Mate DT Endo Motor
Overview
The NSK Endo-Mate DT is a smart and reliable dental endodontic motor that offers the flexibility of pedal-free operation to maintain hygiene. Its ultra-slim and compact handpiece, easy access to the last molar region, and a wide range of speed and torque Control with auto-reverse functionality can enhance the quality of your root canal treatment.
Overview
The NSK Endo-Mate DT is a smart and reliable dental endodontic motor that offers the flexibility of pedal-free operation to maintain hygiene. Its ultra-slim and compact handpiece, easy access to the last molar region, and a wide range of speed and torque Control with auto-reverse functionality can enhance the quality of your root canal treatment.
Key Features and Benefits
Innovative and User-Centric Design:
It combines smart technology with portability, featuring an ultra-slim and compact handpiece.
Intelligent Memory Function:
Customizable Settings: The ENDO-MATE DT can memorize exact speed and torque settings for up to 9 Ni-Ti files from all major suppliers.
Versatile Auto-Reverse Modes: Features three working modes – auto-reverse on, auto-stop, and auto-reverse off, enhancing procedure safety and efficiency.
Responsive Torque Control:
The motor reacts promptly when the load reaches the preset torque level, providing an additional layer of control and safety during procedures.
Pedal-Free and Foot Control Operation:
Offers flexibility with an on-off switch for pedal-free operation.
Optional Foot Control: An additional foot control unit is available, catering to different operational preferences.
Dual Power Supply:
Ensures full portability with a two-way power supply, either AC or battery-driven, making it suitable for various clinical environments.

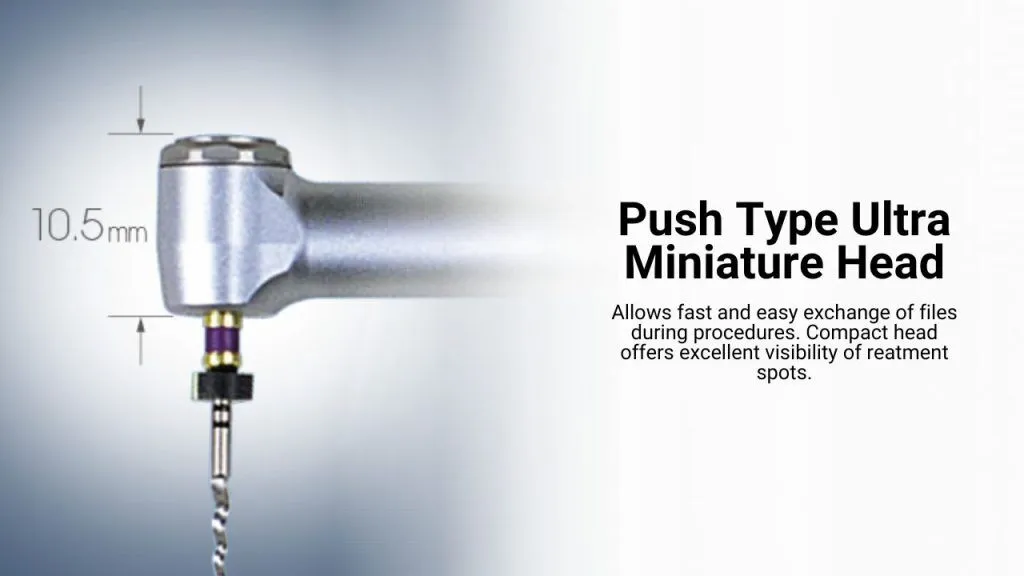

Push Type Ultra Miniature Head:
Allows quick and easy file exchange during procedures, enhancing workflow efficiency.
Its compact design offers excellent visibility, crucial for precise treatment.
Quick Joint Mechanism:
Features a quick-release system for effortless head exchange.
Maintains excellent visibility of the treatment spot, even in challenging positions.

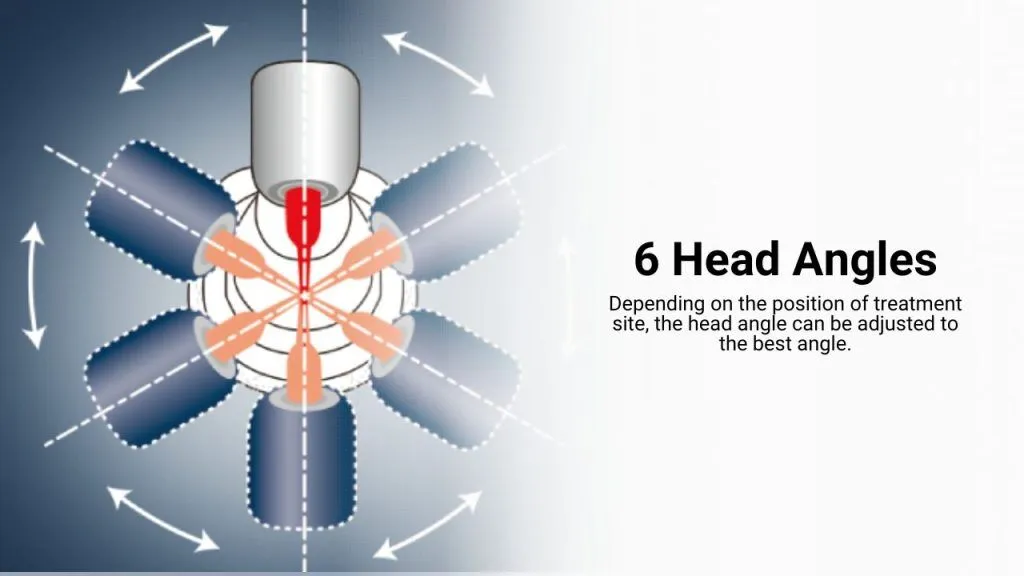

Adjustable Head Angles:
Six head angles can be adjusted depending on the treatment site position, providing optimal access and visibility.

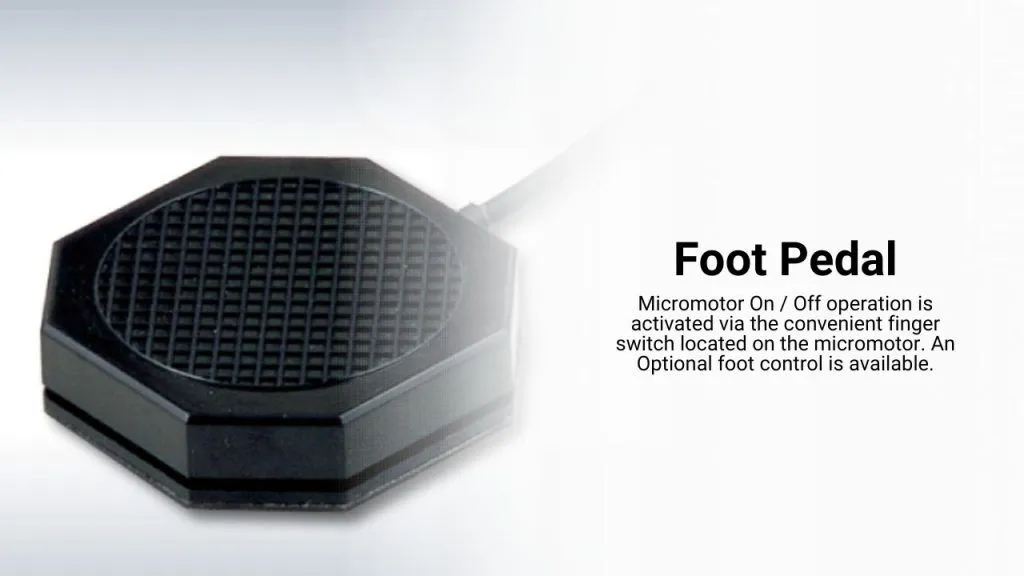

Convenient Foot Pedal:
Micromotor on/off operation can be activated via a finger switch on the micromotor.
Enhances control and reduces manual handling during procedures.
User-Friendly Flat Panel:
The flat control panel is designed for simple and intuitive operation.

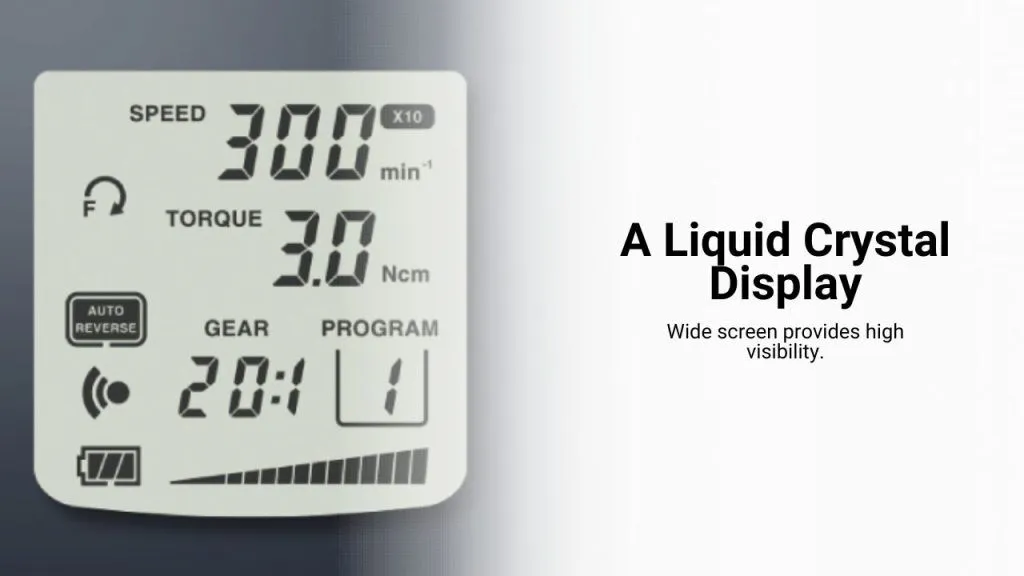

Clear Liquid Crystal Display: The wide screen offers high visibility, ensuring easy monitoring and adjustment of settings.
Comprehensive Package:
The complete set includes the Control Unit, Motor and Cord, MP-F20R Head (20:1), Handpiece Stand, and AC Adaptor.
Technical Specification
| Specification | Detail |
|---|---|
| Product Type | ENDO-MATE DT Endomotor |
| Design | Smart, Portable, Ultra-slim & Compact Handpiece |
| Key Features | Torque Control & Auto Reverse |
| Memory Function | Memorizes speed and torque for up to 9 Ni-Ti files |
| Auto-Reverse Modes | Auto-reverse on, auto-stop, auto-reverse off |
| Operation | On-off switch for pedal-free operation; Optional foot control |
| Power Supply | Two-way: AC or battery driven |
| Head Design | Push Type Ultra Miniature Head for easy file exchange |
| Quick Joint Mechanism | Quick release system for head exchange |
| Head Angle Adjustment | 6 adjustable head angles |
| Foot Pedal | Optional; Micromotor on/off via finger switch |
| Control Panel | Flat, user-friendly |
| Display | Wide Liquid Crystal Display (LCD) |
| Model Information | ENDO-MATE DT (120 V), Order Code: Y141120 |
| Speed Range | 100-13,000 min-1 (with 20:1, 4:1, 1:1 Geared Heads) |
| Max Torque | 7 Ncm (When Using 20:1 Head) |
| Battery Usage | 5 hours charge / 2 hours continuous use (Depending on Workload) |
| Dimensions | W 92 x D 148 x H 124 mm |
| Weight | Unit: 456 g, Motor Handpiece & Cord: 92 g |
| Contents | Control Unit, Motor and Cord, MP-F20R Head (20:1), Handpiece Stand, AC Adaptor |
Watch the Video
Faqs
Absolutely! The scanner supports print-ready model design, allowing clinics to integrate in-house manufacturing for restorations and appliances.
Disclaimer
Product configurations, features, and specifications are subject to change based on the original manufacturer’s design and supply. Certain accessories or attachments may not be included in the standard offering and can vary by model or production batch. We recommend confirming all required features at the time of purchase. Requests for additions post-delivery will be considered based on availability and feasibility, and may incur additional costs.
