RAYSCAN Alpha (α) 3D Dental CBCT Machine
Overview
When clarity meets intelligence, leadership is born.
The ALL NEW RAYSCAN α 3D isn’t just a CBCT — it’s the most advanced imaging system built for the modern dental clinic. Designed for clinical versatility, AI-enhanced diagnostics, and ergonomic excellence, it sets a new standard for CBCT performance.
From implants and endodontics to orthodontics and pediatrics, RayScan α 3D delivers ultra-clear, low-dose imaging with rapid reconstruction. Built with intuitive FOV presets, wireless control, and RAYGuard IoT monitoring, it’s engineered to empower every practitioner — from diagnosis to delivery.
Key Features and Benefits

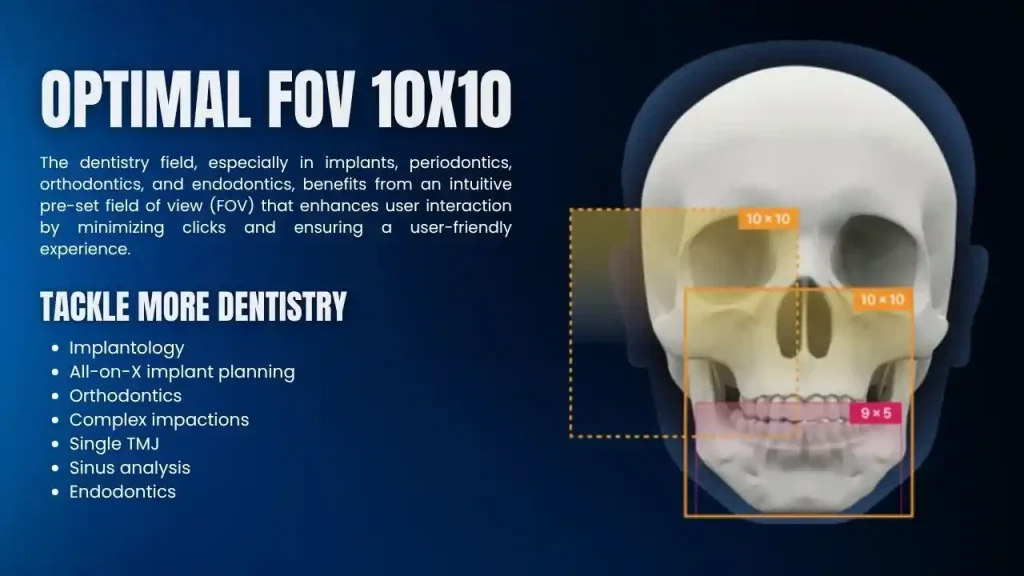

Flexible Field of View (FOV)
- 10×10 FOV covers full dentition, single TMJ, sinus, and 3rd molars.
- 5×9 FOV dedicated to Endo cases at 100μm voxel
- Pre-set FOVs for implants, orthodontics, TMJ, and sinus procedures.
- Jaw-Fast Mode scans in just 5.8 seconds with ultra-low radiation — ideal for pediatric and follow-ups.
High-Resolution Imaging
- Scan in 100 μm (HD) and 160 μm (SD) voxels for intricate detail.
- Critical for endodontics, supernumeraries, and complex impactions.
- Clear visibility of mandibular nerve, sinus artery, and ostium.
Rapid Image Reconstruction
- Full HD scan reconstructed under 20 seconds.
- Fast mode reconstructed in 2 seconds, saving chair time and increasing throughput.

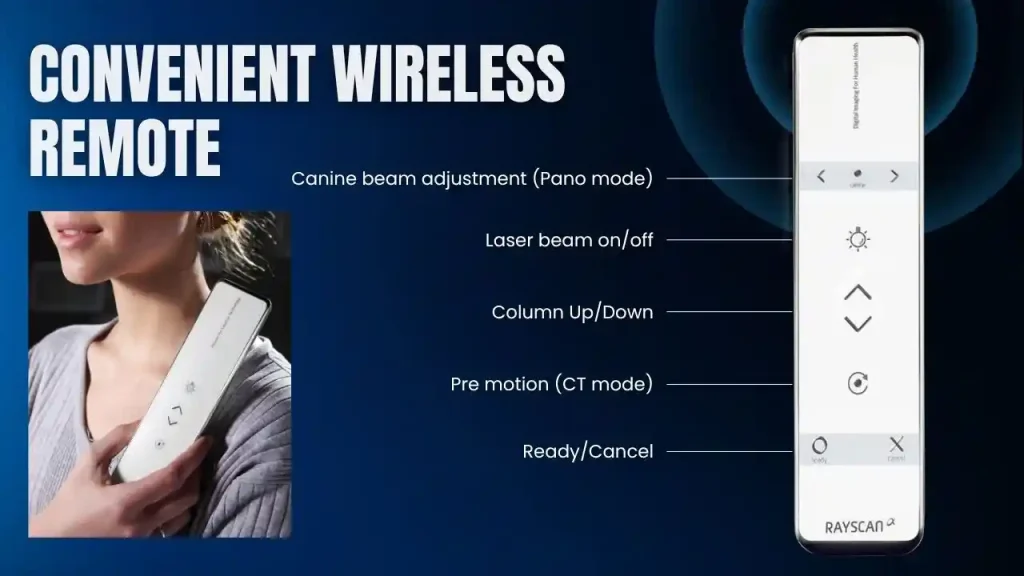

Wireless Remote Control
- Adjust machine height, beams, and laser settings remotely.
- Improves patient positioning and operator ergonomics.

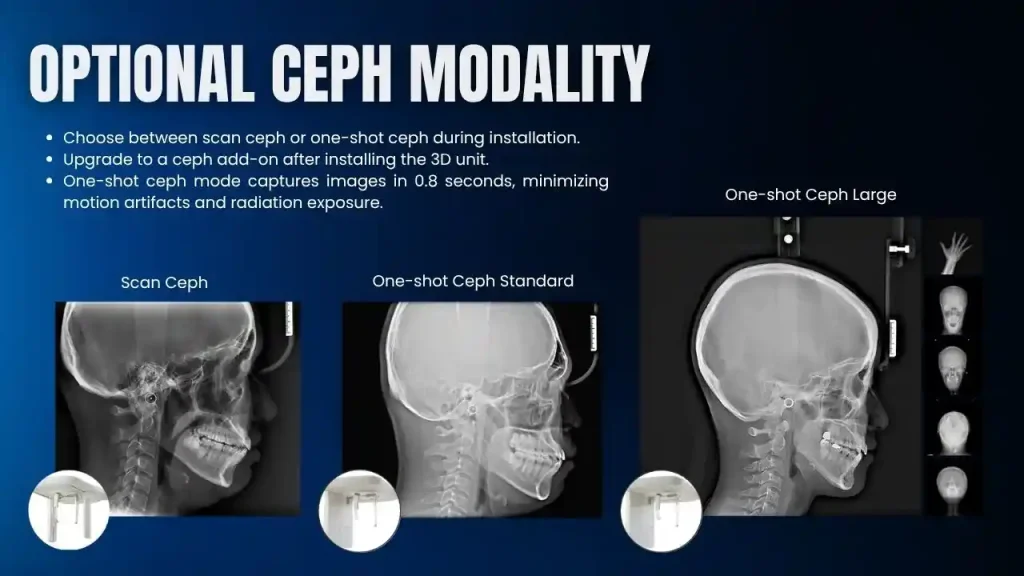

Optional Cephalometric Imaging
- Scan Ceph or One-Shot Ceph (Standard & Large)
- One-shot captures in 0.8 seconds, reducing motion blur and dose.

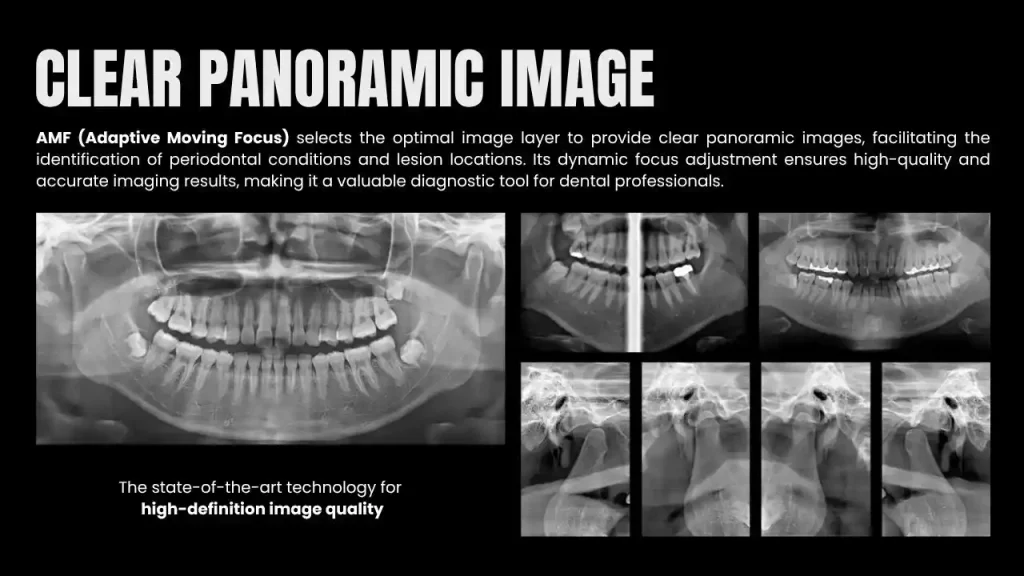

Crystal-Clear Panoramic Images
- AMF (Adaptive Moving Focus) selects best image layer automatically.
- Enhanced clarity in bone, periodontal health, and lesion detection.

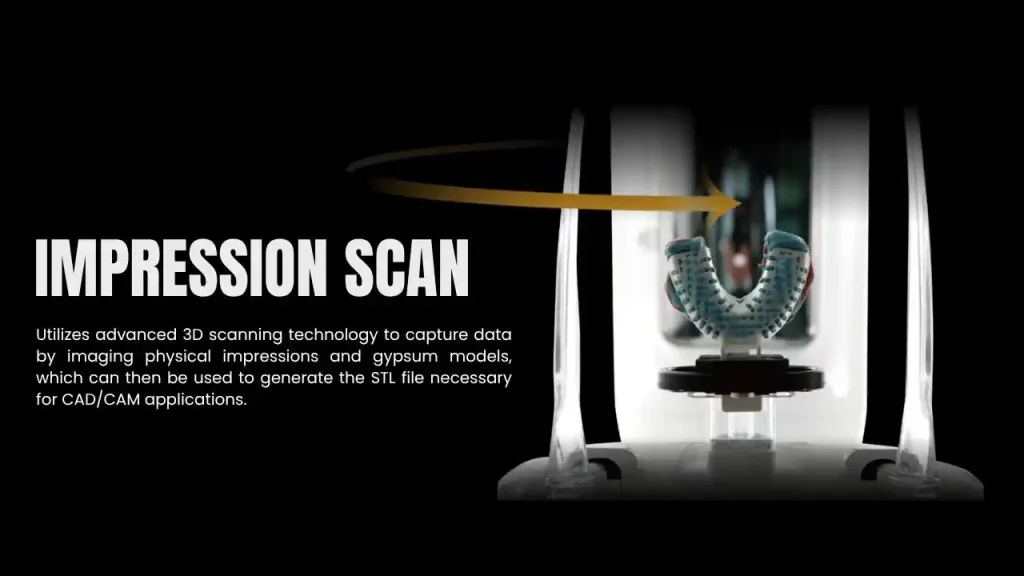

Impression Scan Mode
- Scan physical impressions and models to generate STL files.
- Perfect for CAD/CAM workflows and digital labs.
RAYGuard IoT Monitoring
- 24/7 smart monitoring of CBCT health and usage.
- Predictive maintenance and minimal downtime.
Powerful Ondemand 3D Imaging Software
- Analysis Report: For imaging centers, dental clinics, dental labs, and educational institutions, You can highlight the patient’s diagnosis and treatment, and create a customized report.
- Planning Implant Placement: Through OnDemand3D, you can analyze the patient’s oral cavity in detail, place the implant in the right location, and perform a virtual operation.
- Airway Measurement: With just a few clicks, anyone in the dental field can easily and accurately measure airway volume.
- Comparative Analysis: The OnDemand3D Fusion module visually shows the patient’s condition before and after surgery by superimposing two sets of dicom data, and sophisticated measurements can be performed through multiple options.
Technical Specification
Parameter | RAYSCAN α 3D |
Imaging Modes | CBCT 3D, Pano, Ceph (optional) |
FOV Options | 10×10, 9×5 (Upper/Lower, Endo), Jaw Fast |
Voxel Size | 100μm (HD), 160μm |
Scan Time | Jaw Fast: 5.8 sec |
Reconstruction Time | HD: 20 sec, Fast: 2 sec |
Remote Control | Wireless: Height, beam, laser, mode |
Ceph Options | Scan Ceph, One-Shot Ceph |
One-Shot Ceph Time | 0.8 seconds |
Panoramic Imaging | AMF (Auto Focus Layer Selection) |
Impression Scan Mode | Yes – Converts to STL |
IoT Monitoring | RAYGuard 24/7 Proactive System |
Watch the Video
Faqs
Disclaimer
Product configurations, features, and specifications are subject to change based on the original manufacturer’s design and supply. Certain accessories or attachments may not be included in the standard offering and can vary by model or production batch. We recommend confirming all required features at the time of purchase. Requests for additions post-delivery will be considered based on availability and feasibility, and may incur additional costs.
